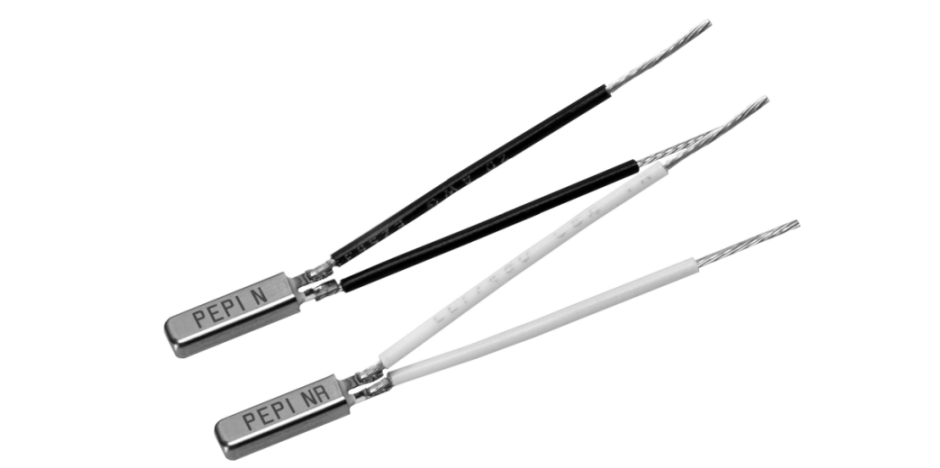

N Series

• Thermostat, temperature control
• Contact form of models N, N-1, N-2: single pole, single throw; open on temperature rise
  Contact form of model NR: single pole, single throw; close on temperature rise
• Creep action device
• Rated load:
  8 A 12 VDC
  4 A 24 VDC
  Model N-1, N-2: Short circuit current until 100 A 12 VDC
• Calibration OFF temperature selectable from
  +30°C to +130°C (Model N, N-1, N-2);
  +30°C to +125°C (Model NR); with 1°C increments
• Factory preset fixed calibration temperature
• Calibration tolerance customizable from ±3 K to ±10 K
• No differential between OFF and ON calibration temperature, due to creep action contacts
• Bimetal carries current
• Current sensitivity customizable through the specific resistance of the sensing element (Models N, N-1, or N-2)
• Contacts are gold plated (also usable for applications with low voltage and small current)
• Customization of lead wire and insulation is possible
• Approvals: UL, C-UL
