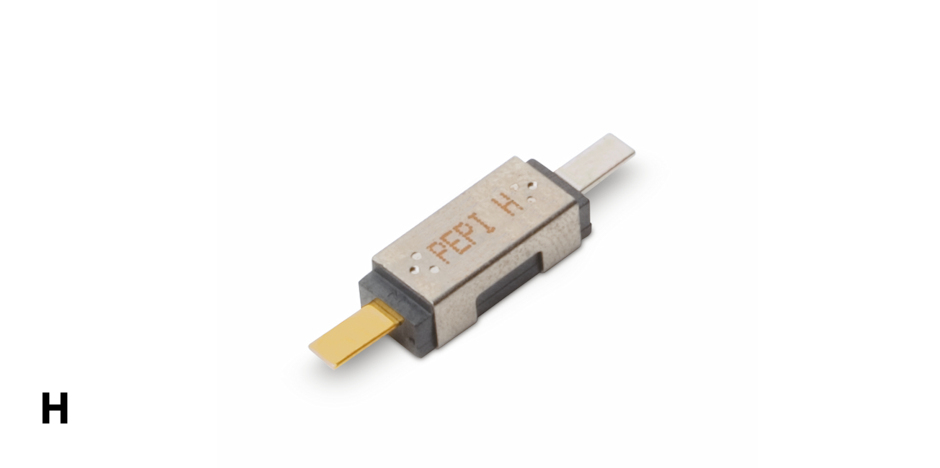

H Series

• Thermal cut-out (SOD, bimetallic single operation device)
• Contact form: Single pole, single throw; open on temperature rise
• Snap action device; quick break/quick make switching action
• Factory preset fixed calibration temperature

  PEPI	Min. Calibration Temperature [°C]	Max. Calibration Temperature [°C]	Max. Current [A]	Max. Voltage	Approvals
  H Series	160	240	8/8/4	250 VAC/24/36 VDC	TÜV/c-UL
  H-3 Series	130	230	10/2	250 VAC/24 VDC	VDE/c-UL
  H-4 Series	130	230	0,5	50 VDC	VDE/c-UL
  H-5 Series	130	240	15/10	120/250 VAC	TÜV/c-UL
  H-7 Series	200	260	15	250 VAC	TÜV/c-UL
  H-8 Series	250	280	15	250 VAC/24 VDC	TÜV/c-UL

• Reset temperature: <-35°C
