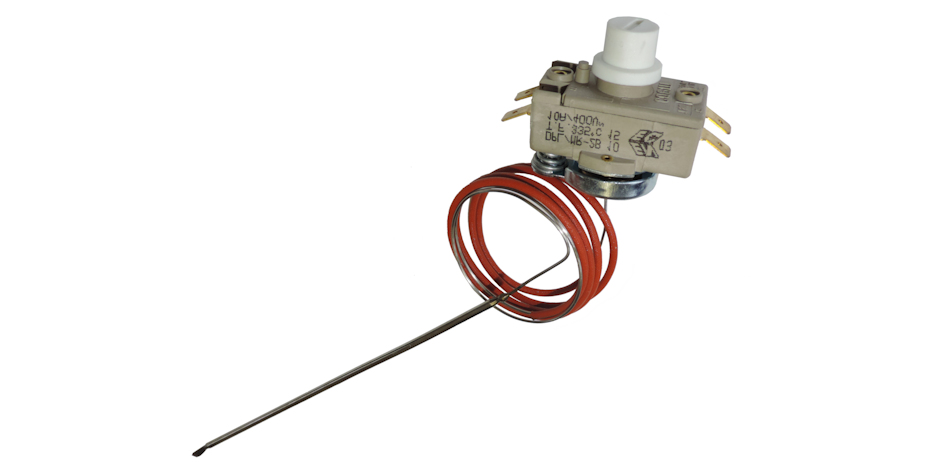

DPL/MR-2B

• Thermal cut-out (Type 2B in accordance to EN 60 730)
• Contact form: double pole (2PST), open on temperature rise, manual reset
• Contact rating (per pole):
  20 A 250 VAC (resistive load)
  10 A 400 VAC (inductive load)
• Calibration OFF temperature can be set from +40°C to +400°C
• Calibration factory pre-set
• Ma. Switch head temperature: 90°C
• Sensing system:
  Standard length of capillary 900 mm or customer specific.
  Material: Copper or stainless steel.
  Bulb diameter: 3, 4, 5 or 6 mm.
  Sensor length is customizable depending on material, diameter, and adjustable temperature range.
  Diverse isolation tube materials (i.e. PVC or silicone-fiber glass) for the capillary tube.
• Approvals: ENEC in accordance to EN 60 730-1 and EN 60 730-2-9, UL
