GB Series

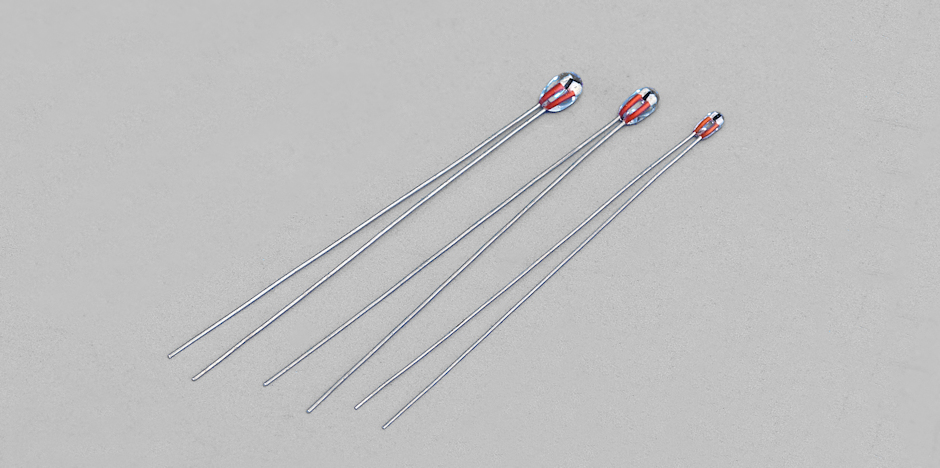

• Glas encapsulated, radially leaded NTC Temperature Sensor

R/T Characteristic:

• Very large portfolio of standard and customer-specific R/T curves
• Nominal resistance R(25°C) customizable: 1 kΩ to 500 kΩ
• B-values (25/85) depending on the R(25°C) value: 3,100 K to 5,000 K
• Accuracy: Point-matched NTC with high accuracy in between ± 1% to ± 10%
• From 25°C deviating reference temperature is possible

Design:

• Head diameter: 0,75 mm, 1,0 mm, 1,3 mm, 1,8 mm and 2,2 mm
• Operating temperature range: -50°C to 300°C
• Optional: on reel packaging and/or with insulated lead wires
